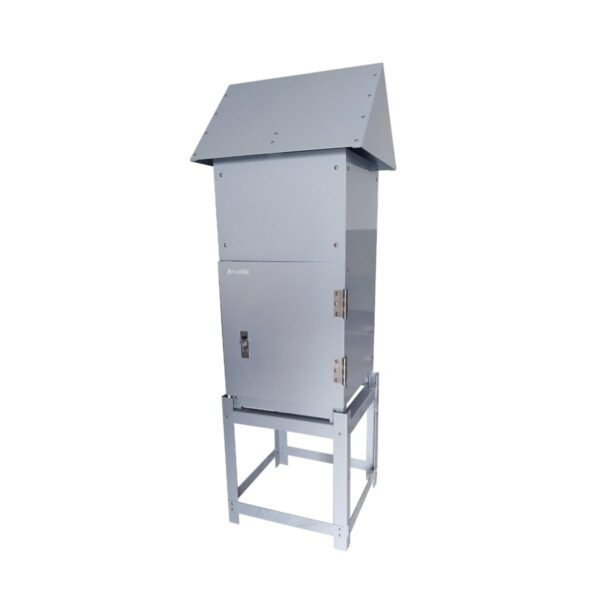

Jual Alat Alat Sampling Debu – HVAS TSP Envilife

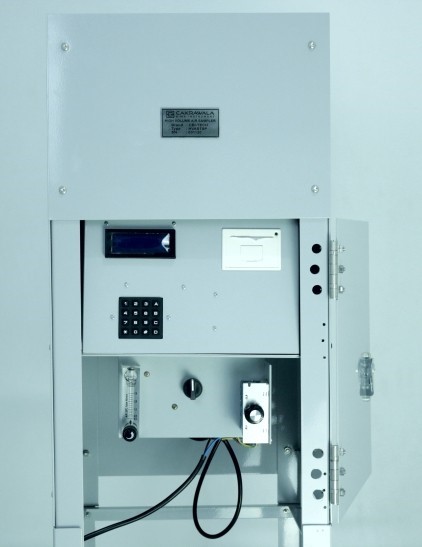

Jual Alat sampling debu High Volume Air Sampler (HVAS) Total TSP di udara ambient. Terdapat display informasi untuk melihat status pengambilan sampling yang terdiri dari informasi Suhu, Kelembaban udara, Barometric pressure, Koordinat sampling (GPS). dilengkapi oleh sistem kontrol dan datalogger, sehingga alat dapat mengatur lama waktu pengambilan sample, mengatur secara otomatis pompa, merekam dan menghitung data temperatur dan kelembaban tiap interval waktu, data koordinat sampling direkam pada saat pengukuran. Data data samping dapat dicetak dan di download secara automatis melalui perangkat Wireless/bluetooth/USB

Hubungi kami:

Note* Konsultasi terkait harga dan penawaran Gratis.

FITUR

5/5 - (2 votes)
  • Kontrol aliran massa atau opsi sistem kontrol aliran volumetrik
  • Pengukuran partikulat TSP
  • Motor berkecepatan tinggi untuk pengambilan sampel berkelanjutan
  • Cocok untuk segala cuaca, body rangka terbuat dari aluminium anodized
  • Bahan filter tersedia dalam serat kaca tanpa kemurnian atau kemurnian tinggi, kuarsa murni atau selulosa

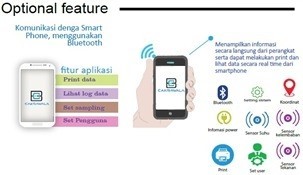

  • Terintegrasi dengan SIstem Android dan pelaporan secara automatis ( hasil keluar dalam bentuk format report )

SPESIFIKASI

5/5 - (2 votes)
  • Bahan : Alumunium
  • Dimensi Shelter : 385 x 385 x 750mm
  • Dimensi Stand : 385 x 385 x 450mm
  • Laju Alir : 2000L/menit
  • Penunjuk Aliran Udara : Skala (1.5 m3/menit)
  • Motor/Blower : 6800 rpm, 1200 watt, 1,5 HP, 6A
  • Filter Holder : 8” x 10′ (Glass Fiber Filter Paper 8? x 10?)

Alat sampling debu

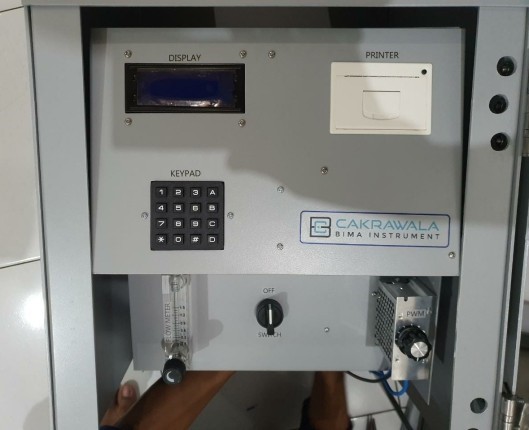

Main Controller :

  • USB-TTL converter : CH340C
  • Power Out : 5V-800mA, 3V-800mA
  • Power IN USB : USB 5V
  • Power VIN : VIN 7~9V
  • Power Consumption : 120mA
  • Logic Level : 5V/3.3V
  • USB : Micro USB / USB-B
    1. Power : 7W
    2. LCD display 2 x 16
    3. Timer 24 jam/ adjustable

Alat sampling debu















Printer :

  • Printing method : Thermal
  • Resolution : 8 dots / mm , 384 dots / line
  • Effective print width : 48mm
  • Character set : ASCII, GB2312-80
  • Print fonts : ANK: 5 x 7
  • Paper type : Thermal paper
  • Paper width : 57.5 +/- 0.5mm
  • Roll diameter : 30mm ( max )
  • Reliability : Mean Cycle Between Failure (MCBF)
  • 500 million lines
  • Interface : Serial ( RS-232, TTL ), parallel
  • Embed depth : 43mm

Alat sampling debu Alat sampling debu

Kelembaban dan temperatur sensor :

  • Operating range humidity 0-100%RH; -40~80°
  • Accuracy humidity +-2%RH (Max +-5%RH); temperature +-0.5°
  • Resolution or sensitivity humidity 1%RH; temperature 0.1°
  • Repeatability humidity +-1%RH; temperature +-0.2°
  • Humidity hysteresis +-0.3%RH
  • Long-term Stability +-0.5%RH/year
  • Interchangeability fully interchangeable
  • Barometric Pressure Sensor

GPS sensor :

  • Receiver type 72-channel M8 engine
  • GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
  • SBAS L1 C/A: WAAS, EGNOS, MSAS
  • Galileo-ready E1B/C (M8N)
  • update rate1 Single GNSS: up to 18 HZ
  • Concurrent GNSS: up to 10 Hz
  • Position accuracy2 0 m CEP
  • Acquisition2 Cold starts: 26 s

Alat sampling debu

Optional Accessories:

Samsung Galaxy Tab A 8.0 (2019) NETWORK Technology GSM / HSPA / LTE
BODY Dimensions 210 x 124.4 x 8 mm (8.27 x
4.90 x 0.31 in)
Weight 345g (Wi-Fi), 347g (LTE) (12.24 oz) Build Glass front, aluminum back, plastic frame SIM Nano-SIM
DISPLAY Type TFT capacitive touchscreen, 16M colors
Size 8.0 inches, 185.6 cm2 (~71.0% screen-to- body ratio)
Resolution 800 x 1280 pixels, 16:10 ratio (~189 ppi density)
PLATFORM OS Android 9.0 (Pie), upgradable to Android 10
Chipset Qualcomm SDM429 Snapdragon 429 (12 nm)
CPU Quad-core 2.0 GHz Cortex-A53 GPU Adreno 504
MEMORY Card slot microSDXC (dedicated slot) Internal 32GB 2GB RAM eMMC 5.1 MAIN CAMERA Single 8 MP, AF
Video 1080p@30fps SELFIE CAMERA Single 2 MP
