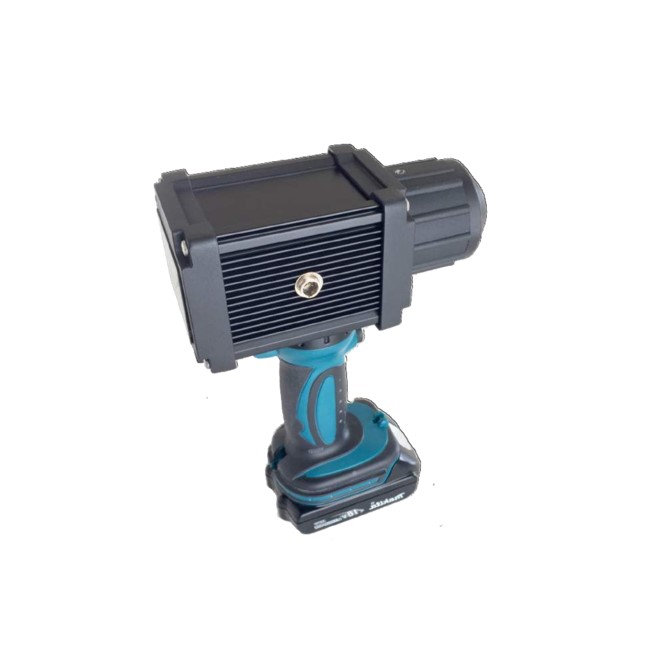

VIATRONICS Hand-held SVR radar for Water Flow measurement – SVR-3pro
*Catatan
Untuk mengetahui informasi terkait harga, silahkan hubungi kami sekarang juga!
Viatronics SVR-3 ProTM kecepatan permukaan genggam radar aliran dirancang khusus untuk mengukur kecepatan kecepatan permukaan sungai, kanal, sungai dan bahkan jaringan pipa. SVR memberi Anda pengukuran kecepatan yang tepat dari posisi stasioner tetap di luar badan air. SVR menyediakan pengukuran aliran air dan cairan yang mudah dan aman.
Spesifikasi
| Measurements specifications | |
| Minimum- maximum velocity | 0.1 to 80 m/s |
| Measurement Accuracy | ± 0.3% - Speeds are rounded down to the nearest tenth of a unit |
| Mechanical specifications | |
| Weight | 1.5 Kg |
| Dimension | L 19 cm x H 26.4 cm x W 8.6 cm |
| Case material | Die cast alumunium & Composite (PVC) |
| General specifications | |
| Unit | MPS (meter per second) |
| Horizontal Cosine Angle Correction | 0° to 60° |
| Sensitivity / range setting | 0 - 8 / up to 100 meter away depending measurement condition |
| Antenna parameters | |
| Type / Nominal transmission Frequency | Ka-Band - 34.7 GHz |
| Polarization / Beam width | Circular 12° (± 1°) |
| Nominal microwave power output | 15mW/nominal |
| Max. aperture power density | 1mW/cm² |
| Touchscreen parameters | |
| Size/Type | 2.4" / IPS LCD |
| Resolution (pixels) / Colors | 320 x 240 / 65.000 |
| Luminance / Contrast | 800 cd/m2 1000:1 (sunlight readable) |
| Viewing angle / Backlight | All (160o) / White LED backlight |
| Environment | |
| Operating Temperature | 20°C to +70°C |
| Maximum Humidity | 90% at 99°F (37°C non condensing) |
| Water resistance | IP64, meets international robustness standard according european community standard BS EN 60529:1992 (IEC 529:1989) |
| Voltages | |
| Supply voltage range | 7.2 VDC - 20 VDC |
| Power supply | Repalceable Li-ion Battery, 18V / 1.3AH Power consumption (Standby / Antenna On) |
