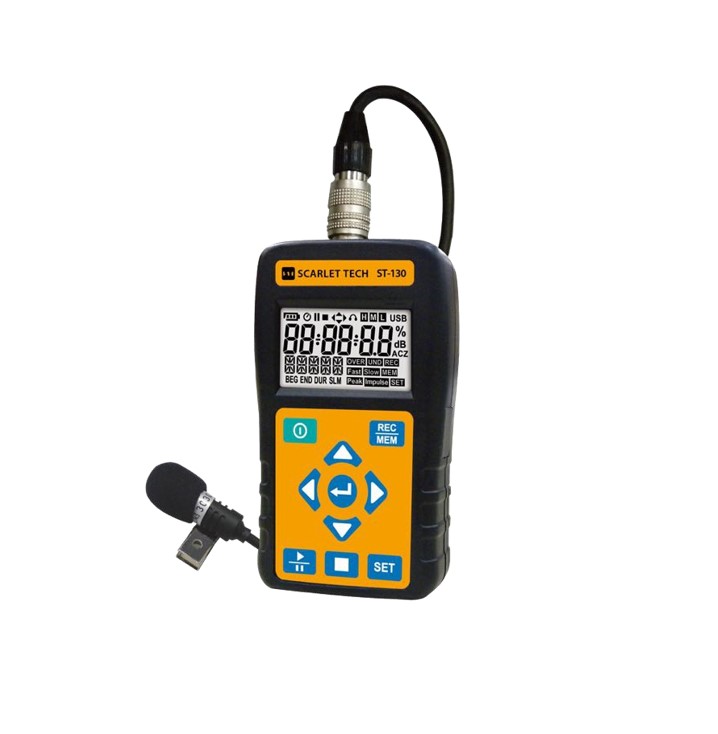

SCARLET TECH ST-130/S High Performance, Low Cost Noise Dosimeter
Scarlet ST-130 Noise Dosimeter adalah alat yang ideal untuk melakukan pekerjaan dan industri pengukuran kebisingan kebersihan dan memberikan solusi unik untuk aplikasi ini. ST-130 adalah dirancang untuk memenuhi pengukuran dosis standar peraturan OHSA, IEC dan ISO. Ke mengukur paparan kebisingan jangka panjang, ST-130 hadir dengan yang kecil, ringan, bebas kabel desain dan dapat dikenakan di bahu untuk ketidaknyamanan minimal.
Spesifikasi
SPECIFICATIONS | |
Display | Single LCD MAX reading 999999 |
Display refresh rate | 1 Hz |
Standard | IEC 61252-1993; IEC 61672-1-2003 |
ANSI S1, 25-1992; ANSI S1, 4-1983; ANSI S1, 43-1997 | |
Microphone (ST-130S) | 1/2” pre-polarized condenser microphone build in preamplifer: |
1V/Pa@250HZ, frequency range: 20 Hz~12.5 kHz, Thermal noise: <25 dB(A) | |
Microphone (ST-130) | 1/2 inch Electret condenser microphone |
Measurement (Noise Dose Meter) | Does%, Lxyp, Lxmax, Lxmin, Lxeq, SEL( LAE ), PeakMAX, LAVG, TWA, LEP, LN% |
Measurement (Sound Level Meter) | Lxyp, Lxmax, Lxmin, Lxeq, SEL( LAE ), PeakMAX |
Display range | 30…90 dB (L) |
50…110 dB (M) | |
70…140 dB (H) | |
Max Cpeak measurement | 90…143 dB |
Dynamics range | 60 dB |
Accuracy | +/- 1.4 dB @ 94 dB / 1 kHz |
Internal memory | Data loger data: 10,000 NDM surveys; 1,000,000 SLM readings |
Time weighting | Fast / Slow / Impulse |
Frequency weighting | A / C / Z |
Frequency range | 20 Hz…8 kHz |
Starting time | Less than 10 sec |
Battery life ( ST-130S ) | 20 hours ( 9V Alkaline battery x 1 ) |
Battery life ( ST-130 ) | 24 hours ( 9V Alkaline battery x 1 ) |
Dimensions | 107 (L) x 65 (W) x 33 (H) mm |
Environmental conditions: 23° C ± 5° C, relative humidity < 80%
