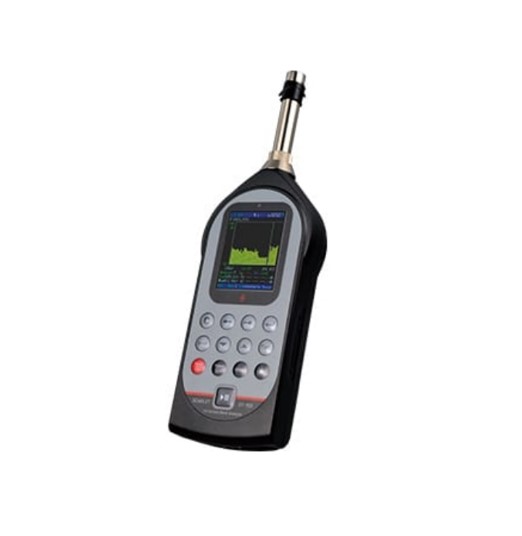

SCARLET TECH ST-15D Class1 Sound Level Meter
Pengukur vs. Penganalisis
SCARLET TECH ST-15D Class1 Sound Level Meter atau Pengukur level suara adalah perangkat yang memungkinkan Anda menentukan akustik intensitas dan untuk mengukur tingkat tekanan suara, tetapi tidak tentu menentukan tingkat suara dalam kaitannya dengan toleransi manusia telinga. Pengukur level suara Scarlet Tech ScarletSound™ cocok untuk aplikasi profesional, termasuk pengukuran suara di tempat kerja dan pengukuran suara lingkungan.
Penganalisis suara menyediakan analisis pita oktaf untuk membantu Manajer Keselamatan mengidentifikasi dengan tepat sumber kebisingan dengan mudah dengan melihat ke yang paling relevan komponen frekuensi. Informasi domain frekuensi didasarkan pada teknologi DSP. ScarletSound™ ST-15D adalah yang Anda butuhkan.
*Catatan
Untuk mengetahui informasi terkait harga, silahkan hubungi kami sekarang juga!
Modularisasi Seri ST-15D dirancang dengan membagi fungsi utama menjadi modul. Dengan menginstal modul yang berbeda, ScarletSound™ memberikan para ahli fleksibilitas paling banyak untuk memilih fungsi yang benar-benar mereka butuhkan.
- Modul analisis statistik
- Modul pencatat data
- IEC-61672-2002 Kelas 1
- Fungsi Perekaman
- 10 Hz…rentang frekuensi 20 kHz
- Rentang pengukuran 20 dB…142 dB
- Desain modulasi menyediakan 4 sub model
Daftar Fungsi Utama
Gambar: Antarmuka Menu
1. Integrating Function
- Measuring Interface: L i, L p, L q,t, L q,T, L max, L min, L peak LAE, LC-A, SEL Note: x is A,C,Z, y xy xy xe xe x x x is F,S,I
- Integrating time: 1s~99h59m59s, set in random
- Measuring Interface: Simple, List, Huge, Big interface
Gambar: Integrating Function
2. Statistical Analysis Function
- Main Function: The statistical analysis, 24 hours noise monitor automatically.
- Mainly Measure Index: L , L , , L ,T, L , L , L T , SEL, Ln as minimum: 1, 5, 10, 50, 90 with xyp xeq 0.5s xeq xymax xymin xyeq
0.1 dB resolution, SD.
Note: x is A,C,Z y is F,S,I n is 1~99
24h measures index: Ld, Ln, Ldn
- Up to 28 statistical Ln % values, two statistical analyzers each has 7 preset to L1, L5, L10, L50, L90, L95& L99 and 7 user defined Ln values. Two statistical analyzers with independent time and frequency weight.
Gambar: Statistical Analysis Function
4. GPS Positioning Function
Measure longitude, latitude, altitude, movement speed which can be recorded together with the noise measu rement result.
Gambar: GPS Positioning Function
Optional Upgrade Function List
- Real-time 1/3 OCT Spectrum Function
- Filter type: Parallel (simultaneous) 1/3 octave band filter, G10=103/10
- Fulfills standards: IEC 61260: 1995 Class 1
- Frequency bands: 33 Octave bands 12.5Hz-20kHz
- Real-time Analysis Speed: 50 times/s
- Measuring Interface: List interface and graph interface
- Measuring Parameters: Lxyp, Lxeq,0.5s, Lxeq,T, , Lxymax, Lxymin, Tm Note: x is A,C,Z,B,D, F0i y is F,S
- Frequency Weighting: A, C, Z can be chosen
- Level linear range: above 110dB.
Gambar: Real-time 1/3 OCT Spectrum Function
- Real-time 1/1 Oct Spectrum Function
- Filter type: Parallel octave band filter, G10=103/10
- Fulfills standards: IEC 61260: 1995 Class 1
- Frequency bands: 11 Octave bands 16Hz-16kHz
- Frequency Weighting: A, C, Z can be chosen
- Center Frequency: 16 Hz, 31.5 Hz, 63 Hz,125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz
- Measuring Interface: List i and graph interface
- Measuring Parameters: Lxyp, Lxeq,0.5s, Lxeq,T, , Lxymax, Lxymin, Tm, NR Note: x is A,C, Z,F0i y is F,S
- Display content: Real-time display NR & NC values and curves in the process of measuring NR according to ISO 1996:1971 NC according to ANSI S2.12-2008.
- Real-time Analysis Speed: 50 times/s
- Level linear range: above 110dB.
Gambar: Real-time 1/1 Oct Spectrum Function
- Real-time FFT Analysis Function
- Line Number: 2048lines
- Sampling Freq: 48 kHz, 24 kHz, 12 kHz, 6 kHz, 3 kH
- Measuring Parameters: MAX, MIN, LeqT
- Window Functions: hanning, brinell, flat, rectangular
Gambar: Real-time FFT Analysis Function
SD Card & Sound Recording Function
- The SD card can be used as a memory card after installing the program. Saved files can be opened in the EXCEL directly
- When connected to the computer via USB interface, it changes SD card into U disk
- Record Format: 8000 samples/s@8bit, 48000 samples/s@32bit
- File Format: ‘WAV’ including calibration information
- Record Time: fs=48k, record time less than 1h per file fs=8k, record time less than 12h per file
- Replay: by the meter or computer Data is captured to the SD memory card inserted in the sound level meter
Dosimeter Function
- Exchange rates: Q3, Q 4,Q 5,Q 6
- Fulfills standard: IEC 61252: 2002
- Selectable Thresholds: 40-90dB
- Selectable Criterion: 70-90dB
- Lock and with limited access
- Noise dose: 0.01%-999.99%
- Measuring Parameters: LAsp, LASMAX, LASMIN, TWA, LEX 8h, LCpeak, LZpeak, LAeq,T, LAVG, DOSE
- Logging interval: 1min
- Logging content: LAVG1m LAeq1m LCpeak LZpeak LASmax LASmin
Spesifikasi
| Fulfills Standards | IEC 61672 Class 1 |
| IEC 61260 Class 1 | |
| IEC61252:2002 | |
| IEC 60651:2001 Type 1 | |
| IEC 60804: 2000 Type 1 | |
| ANSI S1.4: 1983 Type 1 | |
| ANSI S1.4A:1985 Type 1 | |
| ANSI S1.43:1997 Type 1 | |
| ANSI S1.25:1991 | |
| Microphone | 1/2" pre-polarized condenser microphone removable preamplifier |
| +Preamplifier | (Sensitivity Level: -28dB) |
| Correction Function | Diffusion field correction in order to comply with standards ANSI S1.4 |
| Frequency Range | 10 Hz ~ 20 kHz ± 1 dB (not including microphone) |
| Total Measurement Range | 20dB-142dB (145dB Peak) |
| Accuracy | ±0.7 dB |
| Self-generated Noise | <12 dB(A), 17 dB(C), 22 dB(Z) |
| Frequency Weighting | Parallel (simultaneous) A, C, Z, B, D and user1&2-defined weighting |
| Time Weighting | Parallel (simultaneous) F, S, I, Peak |
| A/D Bits: | 24 bits |
| Sampling Frequency | 48 kHz |
| Delay Time | The meter can delay 0~99s after pressing start measuring button |
| Back Erase Function | Elimination of undesired noise; example barking dogs, cars, doors |
| Display | 240×320 color screen, adjustable brightness, backlight can be closed |
| Display Resolution | 0.1 dB |
| Low battery indication | Symbol indicate low battery |
| Data Storage | 3328 groups of integrating measuring results only |
| (32 Mb FLASH RAM. SD memory card is optiona | 3328 groups of integrating measuring results only |
| 3328 groups of statistical results only (‘statistical 1’ and ‘statistical 2’ analysis index are same.) | |
| 2663 groups of statistical results only (‘statistical 1’ and ‘statistical 2’ analysis index are different.) | |
| Internal Clock | Error less than 1 min/month |
| Output Interface | AC Output (full scale): 1.0V AC RMS; Output Impedance: 1k ; Connector: 3.5 mm stereo plug |
| DC Output: 20mV/dB; Output Impedance: 1k ; Connector: DB-9 plug | |
| RS232 Interface: To computer for output some measurement results instantaneous values , also to mini-printer for printing | |
| Transmission speed: 4800, 9600,115200 bps | |
| USB Interface: available and no need device drive | |
| Allow USB to be controlled via communication commands | |
| Power Supply | 4×LR6 alkaline battery or rechargeable batteries |
| 5 V external power supply | |
| Battery Life | Longest time of 30 hours continuously with 4×LR6 alkaline battery |
| Dimensions | 260 (H) x 80 (W) x 30 (D) mm |
| Weight | 0.35 kg (include batteries) |
| EMC | Type X |
| Environment | Working Temperature: -10 ~ 50°C |
| Storing Temperature: -20 ~ 70°C | |
| Relative Humidity: 25 ~ 90 % | |
| Bluetooth Module | Wireless printing and can communicate with smart phone and realize wireless control sound |
| level meter | |
| GPS | Included |
| Recording Function | Included |
| Printer | Included |
| Class 1 calibrator | Included |
